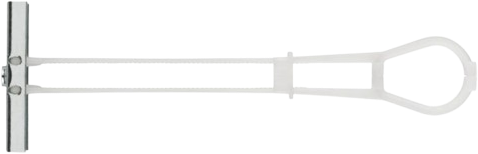

BA-NY
nylon plug American for drywall
Instruction Videos
1 - Put a hole in diameter 13 m in drywall
· align the profile with the nylon plug and insert it in the arrow
3- Pull the eye to close the profile into the interior space and start the ring until the exterior side of the wall.
4 Break the plastic part above the exterior wall
5-Bergorg in diameter 6mm within the nylon plug through the profile to the pair.
Technical Specification
-
-
Characteristics: anchored a metal-floor butterfly for drywall
-
nylon plug to drywall from Adit Ltd
![[your-subject]](https://www.adit.org.il/wp-content/uploads/2026/06/TN4S-2026-1.jpg#9896)
IN-CO
nylon plug Universal nylon for general use of a variety of background walls
CA-PA
nylon plug nylon with European Technical Assessment ETA to concrete and all types of background materials
The total nylon plug range from Adit Ltd
AIS-C
nylon plug nylon in the fabric of termic isolation with European Technical Assessment
GL
nylon plug Universal nylon for general use of a variety of background walls
GX-L
nylon plug nylon with European Technical Assessment ETA to concrete and all types of background materials
What is nylon plug drywall and why is it important?
nylon plug drywall It is a specially designed dock for connecting products, equipment and accessories to the walls of drywall ( Dry Wall) and similar hollow materials.
Unlike the concrete or White Wall, the drywall Wall and the drywall panels with an air space between them – therefore a unique Technology is required that you can hold loads safely and stable, without checking the tablet.
Choosing the correct nylon plug is critical for safety: the unsuitable nylon plug may cause a fall of a shelf, a lighting body, a air conditioning or any other component – and endanger the integrity of the wall and safety of the residents.
nylon plug types drywall - A comprehensive comparison
The market has several types. nylon plug is drywallEach with its own Advantages and disadvantages:
1. 1. nylon plug Universal nylon Expands such as ADIT TN4S
This is just the most common nylon plug in stores. Jorge-burning codes, bring the nylon plug, and from the screw-heads that make the plastic expand behind the board.
- Advantages: Cheap and accessible, easy to install, suitable for very light loaders.
- Disadvantages: A very low suffering – usually up to 5-8 kg. The plastic tends to crack the drywall tablet in the load. It is not suitable for hanging from the ceiling. A limited range of sizes.
- Suffering: Very low (2–8 kg according to the type of tablet)
2. nylon plug Burg in the Cracos (Anazon) such as ADIT TAPLA
nylon plug with a rugged buffer that enables direct penetration to drywall without early drilling. The nylon plug is based in the thickness of the board only.
- Advantages: There is no need for early drilling, quick to install, available in stores.
- Disadvantages: You will suffer from medium to 20 pounds. Bisssus is only the thickness of the board and not beyond the space – therefore relatively weak. It is not suitable for use in drywall (9.5 mm).
- Suffering: Medium (10–20 kg depending on the thickness of the tablet)
3. nylon plug butterfly such as ADIT IN-CO
Selecting a folded nylon plug that is inserted into the wall and is circulated behind the tablet. The mechanism creates a click on the inside of the board.
- Advantages: You will suffer relatively high, suitable for the ceilings and walls.
- Disadvantages: If the screw is over, the nylon plug falls into the wall. It is relatively difficult to install. The screw must be installed along with the nylon plug. A large hole that remains open if you remove the screw.
- Suffering: High (20–50 kg), but depends heavily on the installation technique.
4. nylon plug U.S. - "Cour Toggle" (BA-NY)
The vintage toggle technology that combines a metal profile with a plastic strip. The profile opens and opens itself behind the panel and creates a particularly broad support base.
- Advantages: The highest tolerate of all types of nylon plug Sea, the profile remains in place without the screw, suitable for M5 and M6 growers, allowing repeated use, suitable for ceilings and walls.
- Disadvantages: The price is higher than basic products.
- Suffering: The highest – up to 90 kg of fun and 127 kg (according to 2×15 m)
A comparison table – nylon plug will drywall by suffering
| Type of nylon plug | Suffering (C) | The drilling is required. | suitable for case | Reuse of reuse |
|---|---|---|---|---|
| Plastic is expanding | 2–8 | Yes, yes. | Not not not | Not not not |
| Bored self (stard) | 10–20 | Not not not | Not not not | Not not not |
| The butterfly / archakh | 20–50 | Yes, yes. | Yes, yes. | Not not not |
| BA-NY – Strap Toggle | Up to 127 | Yes, yes. | Yes, yes. | Yes, yes. |
Why is ADIT BA-NY the best solution for nylon plug drywall?
nylon plug drywall Adit BA-NY Adit represents the edge of the Technology in the field of docking to hollow materials. Here are the main reasons to choose it:
- The gateway toggle technology – a metal profile opens: The unique strip mechanism allows the metallic profile to be interpreted behind the drywall tablet and to be parked on a large area, which divides the load and prevents the breaking of the board.
- Flexibility of installation: The nylon plug is available in two sizes: BANYM05 (M5) and MITNYM06 (M6), suitable for screws, borrowers, corners, network beams and various components.
- All the thickness of the drywall tablet: Starting from the 9.5 mm panel to 2×15 mm (drywall double).
- Allows reuse: Unlike nylon plug, a classic butterfly in which the nylon plug falls into the wall with the removal of the screw - theBA-NY keeps the profile in its place!
- International standards: Manufactured by INDEX - from the world's leading manufacturers to anchoring.
The Suffering Loads of nylon plug BA-NY – Technical data
The following table shows the recommended maximum workloads of nylon plug BA-NY according to the thickness of the drywall (the data is suitable for a single anchoring):
| Type of load | 9.5 mm | 12.5 mm | 12.5×2 mm | 15 mm | 15×2 mm | concrete |
|---|---|---|---|---|---|---|
| Preferably recommended (c) | 12 | 23 | 52 | 49 | 90 | 12 |
| The recommended citze (c) | 30 | 53 | 98 | 92 | 127 | 13 |
The standard installation in 5 stages (Strap Toggle BA-NY)
- The drywall cluster is only 13 mm.
- Straightening the metal profile along the plastic strips and inserting it into the drill.
- Pull the eye/sefecting outwardly to sever the profile into the inner space, and push the plastic arrow inward until the shook the exterior of the wall.
- Breaking the excess plastic strips over the wall.
- Translate the screw in the nylon plug through the metal profile behind.
Why choose Adit Ltd?
There are many products called in the market. "nylon plug drywall"But not everyone is at the same level of quality, safety and suffering. When it comes to safety of a product hanging in a ceiling or in a wall – such as a lamp, a lamp, a shelf, a air conditioning, a screen or heavy equipment – there is no place for compromises.
| Adit Ltd - Experience, professionalism and quality without compromise |
|---|
| A long time experience in the Israeli market in the field of construction and defense solutions. |
| imported products from world-leading manufacturers (INDEX) – check and happy. |
| Professional and engineering advice for all project - from the initial phase to execution. |
| Full technical accompaniment: Calculating loads, choosing a suitable solution, installation guidance. |
| A wide range of cloudy products for all types of walls and ceilings under one roof. |
Common Questions about drywall/nylon plug to drywall (FAQ)
What is the difference between nylon plug and drywall?
nylon plug drywall It was designed specifically for penetration and anchoring within thin drywall panels behind which there is air space. His strong draw usually occurs behind the board, not in full material. nylon plug Ordinary Wall (for example, concrete or White) requires a solid wall inside which the plastic can expand and pressure – it simply won’t hold the hollow drywall. Using nylon plug is not suitable for the drywall wall will cause dangerous fall and hole in the wall.
How much can nylon plug drywall carry?
The answer depends on the type of nylon plug and the thickness of the tablet. nylon plug plastic is expanding and will only carry 2–8 kg. nylon plug "Azzone" (Belf) can hold about 10 to 20 kg. In contrast, nylon plug is a professional type of link toggle like Adit’s BA-NY can hold up to 90 kg in the pollut and 127 kg in the gem (double-floor) – the highest in the category.
What drywall is the strongest?
nylon plug Bag toggle (American) BA-NY Presents the highest levels of all familynylon plug Sea to drywall. . . The metallic profile that opens and locked behind the panel divides gravity on a very large surface, allowing a significant high range from plastic butterfly mechanisms or congestion that are based only on the thickness of the tablet.
How do you install nylon plug drywall without drilling?
nylon plug as a “Able” (as adIT) TAPLA(It is usually made of metal or hard plastic and comes with a splatter of its own. Put it directly into a regular Philips screw or screwer, and weave it straight into the drywall tablet until it sits in a zero line with the wall. Then, the screws inside it that holds the stolen item. This is a very quick solution to light and medium loads, without the need for an external drill bit.
How do you install nylon plug drywall BA-NY?
A small hole of 13 mm is aligned with the nylon plug metal strips with the plastic strips and put it into the hole. After passing the space board, it is “disputed” into a horizontal state. Pull the straps to you to blow the metal into the inner din, slipping the small plastic ring on the straps until you lock a guy who is a wall, and refining the rest of the straps. Now you have a strong metal screw inside the drywall! The entire process is about 2 minutes.
Is nylon plug drywall also suitable for hanging from the ceiling (for example, a lamp or a lamp)?
Yes, but not all kinds! nylon plug is too simple or nylon plug. Not suitable The drywall ceiling due to the strong gravity operating downward (forces of constant fire). For the drywall ceiling, it is mandatory to use thenylon plug ceiling drywall Dedicated on the back face of the board, such as the nylon plug metal BA-NY, designed and passed specially tested for the loading load (up to 90 kg depending on the thickness of the panel).
What is the size of the drywall drywall?
For nylon plug BA-NY, a single 13mm diameter is required (as opposed to nylon plug Ya metal "old suns" which sometimes required holes of 16-20 mm). nylon plug other seas may require smaller diameters – therefore it is always important to check the manufacturer’s specifications on the packaging before drilling.
Can you remove nylon plug drywall after installation?
It depends on the type of nylon plug. In nylon plug, a normal snail – it is possible to simply scare it out, but there will be an ugly hole. In nylon plug, a classic butterfly will be removed if you remove the nylon plug screw to the space behind the wall and lose it. B-BA-NY The advanced situation is different: the outer plastic strip keeps the metal profile well fixed behind the tablet! Therefore, the screw can be converted out, removed the item, and the screw has returned to the same nylon plug exactly how many times you want.
Can you use the drywall drywall heavy for a double drywall TV wall?
Definitely. Installing a heavy TV arm on drywall requires a reliable anchoring. It is always recommended to try to reach the metal buds of drywall (the profiles), but if it is not possible, nylon plug of BA-NY is the ideal solution. In drywall double (season 12.5×2 or 15×2), its efficiency and contingency increases significantly (over 100 kg), allowing safe hanging of arms ready for heavy screens.
What is minimal thickness for drywall for use in nylon plug BA-NY?
Minimum thickness of the board is 10 mm, and the inner space height (the air depth behind the panel) required for nylon plug to rotate and align is at least 55 mm. The nylon plug is suitable for a wide range of drywall panels: 9.5 mm, 12.5 mm, 15 mm and double-floor walls.
What is the difference between M5 and M6 in nylon plug drywall Subway toggle?
In the BA-NY (as in many professional anchors), the measure marks the metric screw wire required for work with the nylon plug: M5 is designed for the screw with a thickness of 5 mm, and M6 per screw at 6 mm thickness. Both have the same external dimensions and the same recommended load values. The difference is net adjusted to the hole diameter of the product you want to hang (for example, a hole in the TV arm).
Can you use drywall to hollow block hollow?
Yes! yes! Despite its name, the BBC-NY technology is also incredibly suitable for the hollow block pioneers, hollow block concrete easy and oxidative materials. The profile acts exactly the same: it is aligned, opened and bases itself behind one of the inner partitions in the hollow block space, and creates a strong steel grip.
How many nylon plug seas should have a drywall ceiling?
The number of nylon plug seas depends on the total load, the type of nylon plug and the weight dispersion. A rule of thumb: a total load of 50 kg is mandatory to share the weight on the recommended load for a single nylon plug (according to your drywall thickness in the table) and always scroll upwards. It is important to disperse them in the right intervals. Serious contractions from the ceiling are very recommended to contact the Adit engineer for an accurate calculation and professional advice at no cost.
