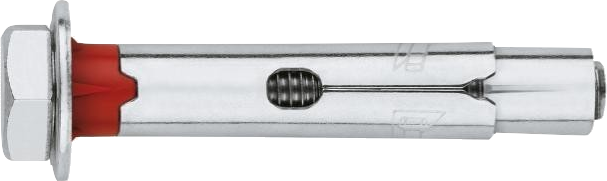

CH Sleeve Anchor
Sleeve anchor with European ETA approval — available in a wide range of heads and finishes, including A2 stainless steel, for concrete and solid masonry.
The Adit sleeve & expansion anchor family
Choose the right mechanical anchor for your base material, load and head type.
Technical specification
| Property | CH — European-approved sleeve anchor |
|---|---|
| Properties | European-approved sleeve anchor |
| Technology | Expanding metal sleeve |
| Versions | 12 — various heads and finishes, including A2 stainless steel |
| Base materials | Concrete and solid masonry |
| Standards | European ETA approval |
Downloads
Instructional & field-test videos
What is a sleeve anchor and how does it work?
A sleeve anchor is a through-fixing expansion anchor with an expanding metal sleeve. You drill through the fixture, insert the anchor, and tighten — the sleeve expands along its entire length and locks the anchor against the wall of the hole.
The advantage: the expansion is distributed over a large area, so the sleeve anchor is also suitable for solid masonry (bricks, solid block) and not only concrete — unlike a wedge anchor.
12 versions in the series
The CH series is available in 12 versions — different heads (eye, hook, bolt, nut) and different finishes (galvanized and A2 stainless steel):
- CH-ES
- CH 8.8 E
- CH 8.8
- CH-GE
- CH-GF A2
- CH-GA
- CH-INB
- CH-AF A2
- CH-AF
- CH-INN
- CH-PI
- CH-PL
Frequently asked questions
What’s the difference between a sleeve anchor and a wedge anchor?
Which version should I choose?
Not sure which version of CH you need? Tell us about the base material, the load and the required head — and our engineers will recommend the right one.
