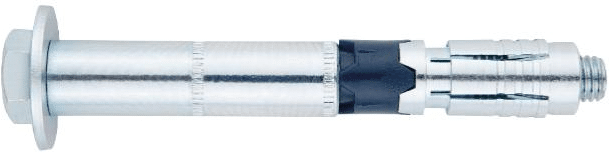

SLPT Dynamic Anchor
Dynamic arrow anchor with European ETA1 approval for cracked and non-cracked concrete and for C1-C2 seismic loading — available with a range of heads.
ETA1 — Cracked concreteSeismic C1-C2Fire approvalVdS — Sprinklers3 heads: SLPC · SLPT · SLPE
The Adit dynamic anchor family
Choose the right dynamic anchor for your load and approval requirements.
Technical specification
| Property | SLPT — dynamic arrow anchor, European approval |
|---|---|
| Characteristics | Heavy shear and tension loads, for dynamic loading |
| Technology | Arrow anchor |
| Cracked concrete | Yes |
| Dynamic loads | Yes — including seismic C1-C2 |
| Fire approval | Yes |
| Available heads | SLPC · SLPT · SLPE |
| Approvals | European ETA1 approval · VdS approval for sprinklers |
Downloads
Proven in the field — selected projects in Israel
SLPT dynamic anchors are installed in projects across Israel.
Instructional & field-test videos
Dynamic anchor with a range of heads
SLPT is a heavy-duty anchor for shear and tension loads, designed for dynamic loading. It carries European ETA1 approval for cracked and non-cracked concrete and C1-C2 seismic approval.
The series is available in three heads: SLPC, SLPT and SLPE — so the head can be matched to the application without compromising the approvals.
Frequently asked questions
What is the difference between SLPT and SZ?
SZ carries a broader range of approvals — shock loads and fibre-reinforced concrete. SLPT carries ETA1 and C1-C2 seismic approval, and is available with a range of heads (SLPC / SLPT / SLPE).
What is the difference between a dynamic anchor and a standard arrow anchor?
A dynamic anchor is tested and approved for loads that vary over time — vibration, cyclic loading and earthquakes. MTP-X is a standard arrow anchor for cracked concrete; SLPT and SZ are specifically designed for heavy dynamic loading.
Dynamic loads? Tell us about the type of load and the required head — our engineers will recommend the suitable model.
