What is a female anchor (nylon plug) for concrete?
internally threaded anchorAlso known as nylon plug is female Or Drop-in Anchor, is mechanical anchor to concrete, an inner vector (a female) located inside the anchor body itself. Unlike Wedge anchor (Congenital anchor/Wedge Anchor) that comes with a permanent prominent screw (“me”), a female anchor installed first within the concrete – and then, at each stage of work, can be converted to it with a foreign screw (me) from the appropriate measure.
The main advantage is Flexibility of installationAll the anchors can be installed early in the project (before the attached element has reached the area), and only later, to convert the appropriate screw to any application. In addition, the screw can be broken at any time and to cover the concrete face – a significant advantage in projects in which a smooth and clean-looking finish is required.
Choosing the right female anchor critical for safety and resistance project: anchored in approval in unsuitable engineering, or inexpensive material that does not meet the device, may cause failure in the context of construption, glycerinelers, merging systems, industrial lighting and more.
How does a female anchor work? The Deformation Controlled
The anchor of theADIT HEHO His family works in technology. Deformation Controlled Expansion (The expansion is controlled by disinformation) – a well-known and happy anchoring method in the European device. After drilling the hole and the anchor, the installation tool is set up and beats a hammer on the instrument. The action pushes the internal cone towards the outside and extends the anchor sleeve against drilling, creating a high friction and the most stable anchoring.
After installation, you can be converted into a standard screw anchor at any time – and whenever you want, break up and kill a new screw – without damaging the anchor itself.
The diversity of the female anchor ADIT HEHO – the extension of the Israeli market
One of the most prominent Advantages of ADIT HEHO It is the diversity – a whole family of female anchors for any type of environment, the strength level and standard requirement, including versions that are nearly unavailable in competing suppliers in Israel:
| The model | Material/plating | Growing | Recommended use |
|---|

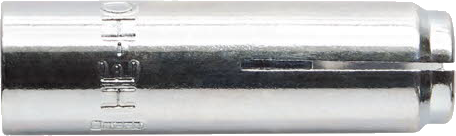

| HEHO | steel, Globone zinc ⁇ 5μm (ISO 4042) | M6–M20 | The common use – ETA is approved for buildings and non-binary |

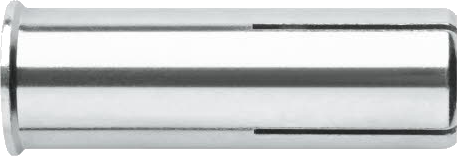

| HE-CL | steel, Globone zinc ⁇ 5μm (ISO 4042) | M6–M16 | Same with HHO, a parallel version |
| HE-A4 | A4/AISI 316 | M6–M20 | Environment for Farm, Beach, Industry, Apart from |
| HE-C4 | A4/AISI 316 | M6–M12 | A humid/corrosion environment, small-sized sizes |

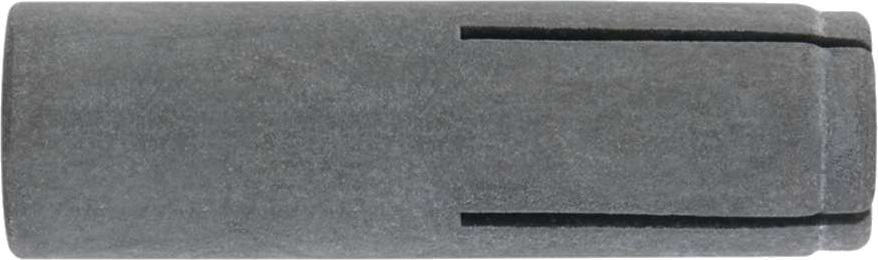

| HE-NS | The Atlantis ⁇ 40μm ( improved hot glories) | M6–M20 | Protecting a particularly high corrosion – without the need for nitrosata |
| HE-NO | steel, Gloton zinc ⁇ 5μm | M6–M20 | General use, without the requirement of ETA from |

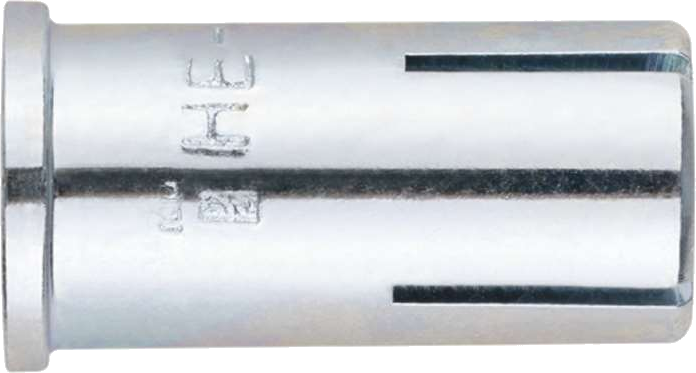

| HE-HC | steel, Gloton zinc ⁇ 5μm | M8–M12 | The concrete is hollow and the Hollow Core. |
Hot balloon (Atlantis) – the coating that almost does not have market competitors
One of the things that unite you. ADIT HEHO He is a model. HE-NS internally threaded anchor in the coating Atlantis ≥40µmEnhanced and significantly thick protective coating from standard zinc coating ( ⁇ 5μm). This coating provides a much higher level of original protection from a standard zinc anchor, allowing a more qualitative and significant alternative from the A4 deployment in projects in which resistance is required over time – for example, in outdoor environments, industrial facilities, or structures exposed to prolonged humidity.
In the Israeli market, most vendors offer only two options: standard zinc gallon or a4 stain at a significant price. B atAditThe Atlantis version gives a “quality platform” – a medium solution that provides real-end value to projects budgets requiring high resistance.
approval Sea – Why ADIT HEHO is the top of the category
The female anchor ADIT HEHO Manufactured by INDEX – Técnicas Expansivas S.L.One of the world’s leading manufacturers in anchoring to concrete, and holds a range of approval European seas from industry converts:
- ETA 14/0135 The European approval is the strictest for theuse of structural (Structural) in non-Cracked concrete, in accordance with the EAD 330232-02-0601, M6 to M20.
- ETA 14/0068 approval is European for useRedundant Systems (Redundant Systems) In cracked and uncracked concrete, including the concrete (HE-HC), in accordance with the EAD 330747-00–01.
- resistance Fire R120 PESF120 approval resistance fire for 120 minutes (Effectis R2014), critical to the Sprinkler systems, siping pipes and fire systems.
- VdS CEA 4001 European Technical Assessment is worsening for the design and installation of the Sphinxer systems on the concrete elements, M8-M20.
- FM Approved approval is an American Pipe Hanger Components for Automatic Sprinkler Systems, M10-M16.
- Designation of INDEXcal – Available for accurate engineering calculation according to EN 1992-4:2018.
Combining all these approval seas together with the variety of materials (steel from Gauluone, Hot Globes and Nerosta A4) makes the A4). ADIT HEHO One of the most happy and diverse female defenders currently available in the Israeli market.
The load of Technical data is full.
The following table shows you. Maximum load recommended (c) for a single anchor in non-Cracked concrete, without any distance and interval effects, according to the product family:
| Size of size | HE-HO / HE-CL / HE-NS | HE-A4 / HE-C4 | HE-HC |
|---|
| M6 | 249 | 87 | — |
| M8 | 327 | 121 | 101 |
| M10 | 432 | 121 | 162 |
| M12 | 603 | 225 | 162 |
| M16 | 894 | 433 | — |
| M20 | 1,220 | 572 | — |
* The data is valid for non-Cracked concrete, based on the turtles that are typical (Nrk,cone) and the tax will be prepared in accordance with the ETA 14/0135. 1kN ⁇ 100 kg.
by concrete The crackedThe typical load is relatively low – for example, the M20 anchor in Cracked concrete carries up to 30.2kN (about 3,000 kg) compared to 43.1kN in non-Cracked concrete – but still presents significant high values from competing products in the category, thanks to the controlled expansion technology.
Technical installation data – a female HEHO anchor
The following table shows the full installation dimensions for each size of the screw, for the HHO anchor (it is also identified for theHE-CL andHE-A4):
| Size of size | The drilling (m) | The depth of drilling (m) | embedment depth is effective (M.) | The thickness of concrete ismin. | The oxidated Mansion (Nm) |
|---|
| M6 | 8 | 27 | 25 | 100 | 4 |
| M8 | 10 | 33 | 30 | 100 | 11 |
| M10 | 12 | 43 | 40 | 100 | 17 |
| M12 | 15 | 54 | 50 | 100 | 38 |
| M16 | 20 | 70 | 65 | 130 | 60 |
| M20 | 25 | 86 | 80 | 160 | 100 |
* The installation tool is dedicated to each size and sold separately. The barga: screw/Mut is translated from strength 4.6 to 8.8 according to ISO 898-1 (steel) or A4-50/70/80 according to EN 3506-1 (Noma).
A simple installation in 5 stages (BHO)
- Snoring codes in diameter and depth suitable for the size of the anchor (by the table).
- Clean the hole that fights drilling through air pressure and brushing.
- Put the anchor into the hole until it is completely incontinuous and not noticeable above the concrete.
- Set up the installation tool that fits into the inner humming of the anchor, and beats the hammer until the kidney reaches the height of the anchor – this action opens the anchor and expands it within the concrete.
- They are engrosing the screw or the right people into the inner screw of the anchor, and are fastened to the recommended mansion by a mantra key.
Why choose Adit Ltd?
There are many products called in the market. “internally threaded anchor” or “nylon plug Female”But not everyone is at the same level of quality, safety and suffering. When it comes to anchoring glycerile systems, pipelines, heavy constituencies or safety systems, there is no place for compromises.
| Adit Ltd – Experience, professionalism and quality without compromise |
|---|
| A long time experience in the Israeli market in the field of construction and defense solutions. |
| imported products from world-leading manufacturers (INDEX) – check and happy in European Technical Assessment ETA. |
| The widest range in the market: steel from the glory, a hot balloon (Atlantis) and arosta A4 – under one roof. |
| Professional and engineering advice for all project – from the initial phase to execution, including calculations according to INDEXcal. |
| Full technical accompaniment: Calculating loads, choosing a suitable solution, installation guidance and engineering support. |
Common Questions About a Female anchor / nylon plug Female (FAQ)
What is the difference between a female anchor and Wedge anchor?
internally threaded anchor It comes with an inner ga within the anchor body, so the screw (the “me”) is burglary to it separately and at every stage you want – and it can also be removed and shooked the face of concrete. Wedge anchor (Convenient anchor)On the other hand, a permanent screw (me) is installed along with the anchor and cannot be removed without cutting it. internally threaded anchor is especially suitable for projects in which you want to install early anchors and connect equipment later, or when you need a chance and reconnect to the break.
How many pounds can a female anchor bear?
The answer depends on the size of the anchor, type of material and situation concrete (sed or unchecked). by nylon plug ADIT HEHO In non-Cracked concrete, the M6 anchor carries up to 149 kg recommended load, and the M20 anchor carries up to 1,220 kg – the highest value in the category of internally threaded anchors in the Israeli market. The hyrosta version (HE-A4) carries lower but still significant values, up to 572 kg per anchor M20.
What is the difference between HEHO, HE-CL, HE-NO and HE-NS?
All of these models operate in the same controlled expansion technology, but differ in the approval Sea and the coating: HEHO and HE-CL Happy in the ETA device for structural and non- structural use, in standard zinc coating. HE-NO It is identical in measurements but without approval ETA. HE-NS equipped with the coating Atlantis 40μm – a improved hot pill that provides significant high-corrosion protection from a normal zinc, an excellent intermediate solution between standard and hysteria.
When should you choose a female anchor from stainless steel (HE-A4/He-C4)?
The A4 (AISI 316) version is recommended in any case of exposure to the corrosion environment: open areas, marine environment, industrial areas with chemical pollution, swimming pools and internal spaces for the long-term. The a4 hydra holds even the condition of severe atmospheric exposure and atmospheric exposure, unlike a standard zinc gel designed for only dry internal conditions.
What is a hot bowl (Atlantis) and why is it rare in the market?
The Atlantis coating is an improved protective coating in the thickness of ⁇ 40μm – about 8 times the standard zinc coating ( ⁇ 5μm). This coating gives the resistance Cosieta anchor much higher than a normal gallon, without reaching the high rise of stainless steel A4. In most anchoring companies in Israel, there is only the interim choice between a normal zinc and a neurosista – in a normal buffer.AditThe Model .HE-NS It allows a quality intermediate solution that fits exactly to projects requiring increased resistance in a controlled budget.
How does a female anchor fit?
The holes in the diameter and the appropriate depth (by the manufacturer table), clean the hole in the struggle through air pressure, insert the anchor until it is fully sinked in concrete, and then set up a dedicated installation tool into the internal tetter and groves in the hammer until the kidney reaches the anchor surface – this action opens the anchor and subsides it in the QZ000. Finally, the screw or the UN is separated by a mantra key to the recommended mansion.
Can a female anchor be used for the concrete diplomas (Spancrete)?
That’s why there is a dedicated model. HE-HCDesigned and specifically reviewed to anchoring in early concrete cases, in accordance with the ETA 14/0068. This model requires relatively short embedment depth (25 mm) and is considered to be parallel distances for the existing cliché steel in the calendar. You cannot use standard HEHO cookies in the hollow boards – it is mandatory to use the specific approved model.
Is a internally threaded anchor protected by fire?
Yes. yes. The HHO/HE-CL anchor holds approval resistance Fire R120 (120 min) according to the 2014 Effectis R2014 test, a critical figure for anchoring glyceral systems, fire-fighting pipeline and a safety system in the case of the car. In addition, the anchor holds approval Y VdS CEA 4001 and FM that confirm it specifically for use of automated glycerical systems.
What is the difference between a female anchor and a female anchoring structural (Structural) and non-structural?
B atuse of structuralThe anchor itself carries the critical load and is required to meet the requirements of strength in only non-Cracked concrete (ETA 14/0135). B atNon-binding use of RedundantIt is assumed that if a single anchor fails, the load can pass to neighboring defenders without harming safety – therefore the Cracked concrete (ETA 14/0068) can also be used. The HHO andHE-CL models are happy for both types of use, which gives them very high ethnourie flexibility.
Can you break up and reinstall a female anchor?
Yes, this is the main advantage of a female anchor compared to Wedge anchor. The screw can be broken at any time (even years after installation) and a new screw to the same anchor, without the need for a new drill. This feature is very useful in projects in which it is required to install the early anchors, and to connect the equipment or the console at a later stage of the work.
What length does a screw need for a internally threaded anchor?
The length of the screw is calculated according to the formula: the length of the required screw (e) + the thickness of the return + thickness of the attached element (tfix). For example, the required HHO M10 range is 10-17 mm. It is important to use the screw from the strength rank (4.6 to 8.8 to the standard steel, or A4-50/70/80 for the roseta) to meet recommended loads.
What is the minimum distance required between two internally threaded anchors?
The minimum distance (smin) depends on the size of the anchor: for example, in the minimum distance HHO M8 is 60 mm, and in the distance M20, it costs about 160 mm. In addition, a minimum distance from the concrete (cmin) point should be maintained – for example 105 mm for M6/M8, up to 280 mm for M20. This distance cannot be maintained, may result in a concrete cousion failure between nearby anchors. An accurate calculation should be turned to the engineer Adit.
